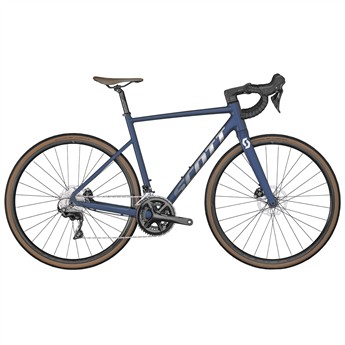

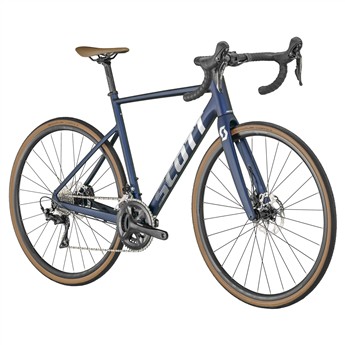

SCOTT Speedster 10 to lekki, zwinny i ekonomiczny rower szosowy wykonany z aluminium. Dzięki w pełni zintegrowanym przewodom, rower ten nie tylko będzie dobrze jeździł, ale również będzie dobrze wyglądał!
Rama
Nowa rama SPEEDSTER typ A kompatybilna z błotnikami Metrix
Zawieszenie
Nowy widelec SPEEDSTER CARBON kompatybilny z błotnikami Metrix
Komponenty
karbonowy widelec/ SHIMANO 105 22 biegi / hydrauliczne hamulce
Koła
Syncros Race 24 Disc, 28 Front / 28 Rear
Opony: Schwalbe Lugano, 700x32C
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 70.5 ° | 71.0 ° | 72.0 ° | 72.5 ° | 73.0 ° | 73.3 ° | 73.3 ° | |||||||||
| B | head tube length | 93.0 mm | 103.0 mm | 123.0 mm | 143.0 mm | 163.0 mm | 183.0 mm | 203.0 mm | |||||||||
| C | top tube horizontal | 515.0 mm | 525.0 mm | 540.0 mm | 554.0 mm | 569.0 mm | 583.0 mm | 596.0 mm | |||||||||
| D | standover height | 735.0 mm | 754.0 mm | 780.0 mm | 800.0 mm | 820.0 mm | 840.0 mm | 864.0 mm | |||||||||
| E | BB offset | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | -70.0 mm | |||||||||
| F | BB height | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | 275.3 mm | |||||||||
| G | wheel base | 1,001.5 mm | 1,007.9 mm | 1,010.0 mm | 1,015.8 mm | 1,023.3 mm | 1,030.3 mm | 1,043.0 mm | |||||||||
| H | BB center to toptube center | 430.0 mm | 450.0 mm | 480.0 mm | 500.0 mm | 520.0 mm | 540.0 mm | 570.0 mm | |||||||||
| I | BB center to top of seattube | 470.0 mm | 490.0 mm | 520.0 mm | 540.0 mm | 560.0 mm | 580.0 mm | 610.0 mm | |||||||||
| J | seat angle | 75.0 ° | 75.0 ° | 74.5 ° | 74.0 ° | 73.5 ° | 73.1 ° | 73.0 ° | |||||||||
| K | chainstay | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | 427.0 mm | 427.0 mm | 427.0 mm | |||||||||
| L | reach | 376.0 mm | 383.0 mm | 387.0 mm | 391.0 mm | 385.0 mm | 399.0 mm | 406.0 mm | |||||||||
| M | stack | 517.8 mm | 529.1 mm | 551.6 mm | 572.4 mm | 593.3 mm | 613.6 mm | 632.7 mm | |||||||||
| N | stem length | 83.0 mm | 83.0 mm | 93.0 mm | 103.0 mm | 103.0 mm | 113.0 mm | 113.0 mm | |||||||||
